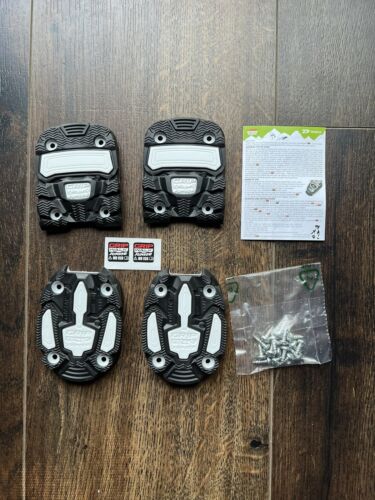

Dalbello Gripwalk Junior Soles Ski Boot Heels And Toes Replacement Part RARE. Jr

New in Bag.

The following Junior boot models are ready to be mounted with GripWalk®

- CX 1.0 / CXR 1.0 / GAIA 1.0 / MENACE 1.0: sizes 14.5 - 18.5 MP

- CX 2.0 / CXR 2.0 / GAIA 2.0 / MENACE 2.0: sizes 19.0 - 21.5 MP

- FXR 1: sizes 14.5-18.5 MP

- FXR 2: sizes 19.5-20.5 MP

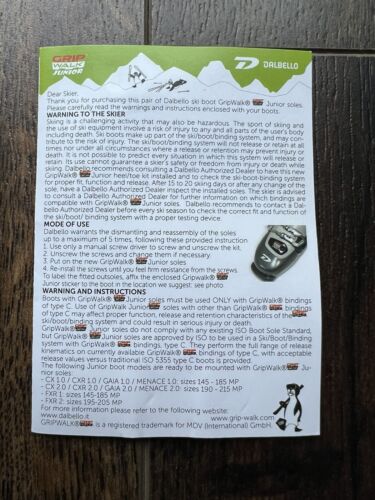

Dear Skier,

Thank you for purchasing this pair of Dalbello ski boot GripWalk®

Please carefully read the warnings and instructions enclosed with your boots.

Junior soles.

WARNING TO THE SKIER

Skiing is a challenging activity that may also be hazardous. The sport of skiing and the use of ski equipment involve a risk of injury to any and all parts of the user's body including death. Ski boots make up part of the ski/boot/binding system, and may contribute to the risk of injury. The ski/boot/binding system will not release or retain at all times nor under all circumstances where a release or retention may prevent injury or death. It is not possible to predict every situation in which this system will release or retain. Its use cannot guarantee a skier's safety or freedom from injury or death while

for proper fit, function and release. After 15 to 20 skiing days or after any change of the sole, have a Dalbello Authorized Dealer inspect the installed soles. The skier is advised to consult a Dalbello Authorized Dealer for further information on which bindings are compatible with GripWalk®

• Junior soles. Dalbello recommends to contact a Dal-

bello Authorized Dealer before every ski season to check the correct fit and function of the ski/boot/ binding system with a proper testing device.

MODE OF USE

Dalbello warrants the dismantling and reassembly of the soles up to a maximum of 5 times, following these provided instruction

1. Use only a manual screw driver to screw and unscrew the kit.

2. Unscrew the screws and change them if necessary.

3. Put on the new GripWalk®

'Junior soles

4. Re-install the screws until you feel firm resistance from the screws.

To label the fitted outsoles, affix the enclosed Gripwalk® Junior sticker to the boot in the location we suggest: see photo.

WARNING AND INSTRUCTIONS

Boots with GripWalk®

Junior soles must be used ONLY with GripWalk® bindings

of type C. Use of GripWalk Juniors

soles with other than GripWalk®

of type C may affect proper function, release and retention characteristics of the SkI/boot/binding system and could result in serious injury or death.

Junior soles do not comply with any existing ISO Boot Sole Standard,

but GripWalk®

Junior soles are approved by ISO to be used in a Ski/Boot/Binding

system with GripWalk® w. bindings, type C. They perform the full range of release kinematics on currently available GripWalk® 5a5. bindings of type C, with acceptable release values versus traditional ISO 5355 type C boots is provided.

The following Junior boot models are ready to be mounted with GripWalk®

- CX 1.0 / CXR 1.0 / GAIA 1.0 / MENACE 1.0: sizes 145 - 185 MP

- CX 2.0 / CXR 2.0 / GAIA 2.0 / MENACE 2.0: sizes 190 - 215 MP

- FXR 1: sizes 145-185 MP

- FXR 2: sizes 195-205 MP
